OG PRO SERIES
The ideal sized and capacity inverter for backup systems for apartments, small houses, and off-grid installations such as food trucks, remote structures, and more. Inverter, solar charger, and battery charger all in one compact, easy-to-install package.

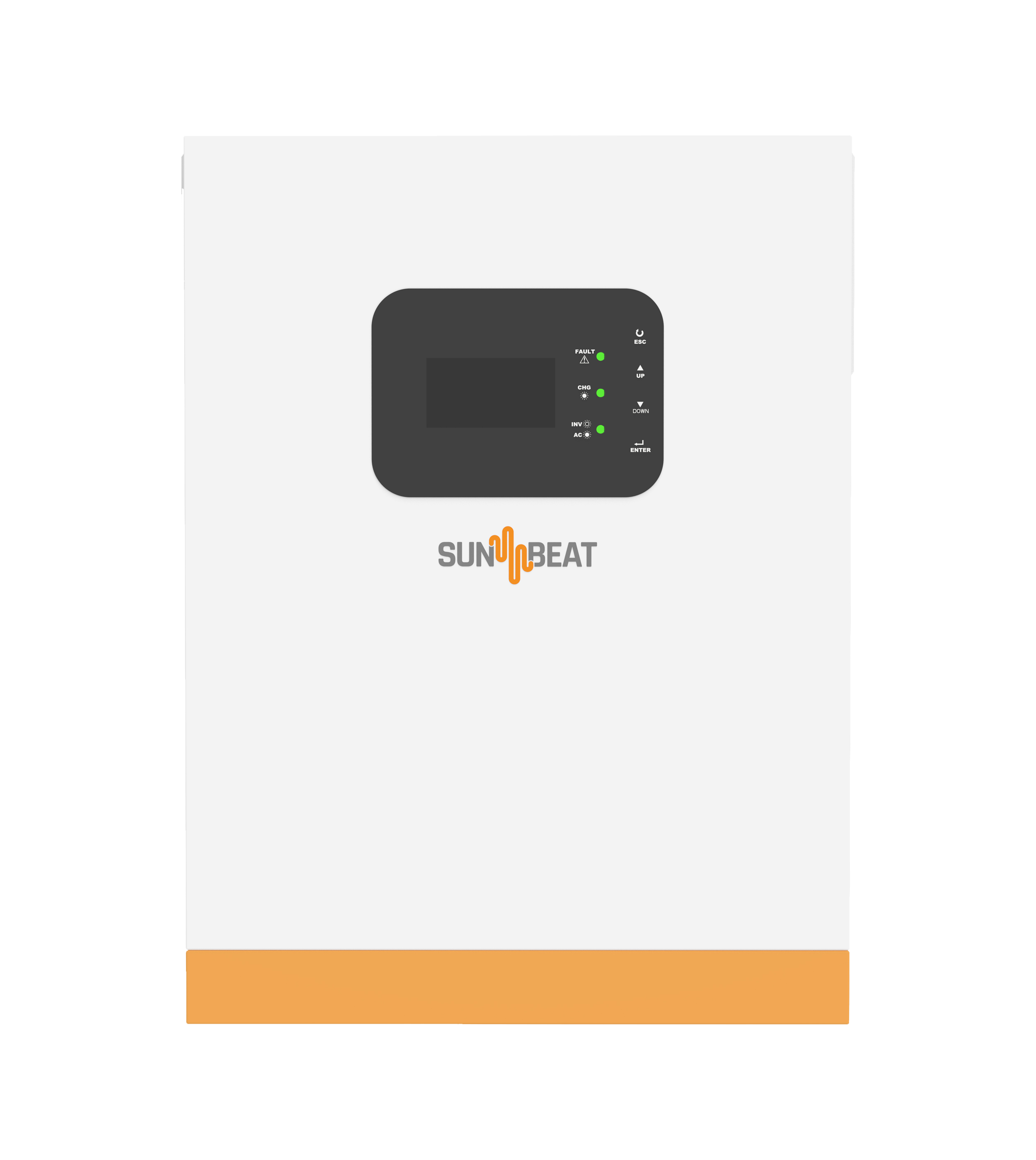

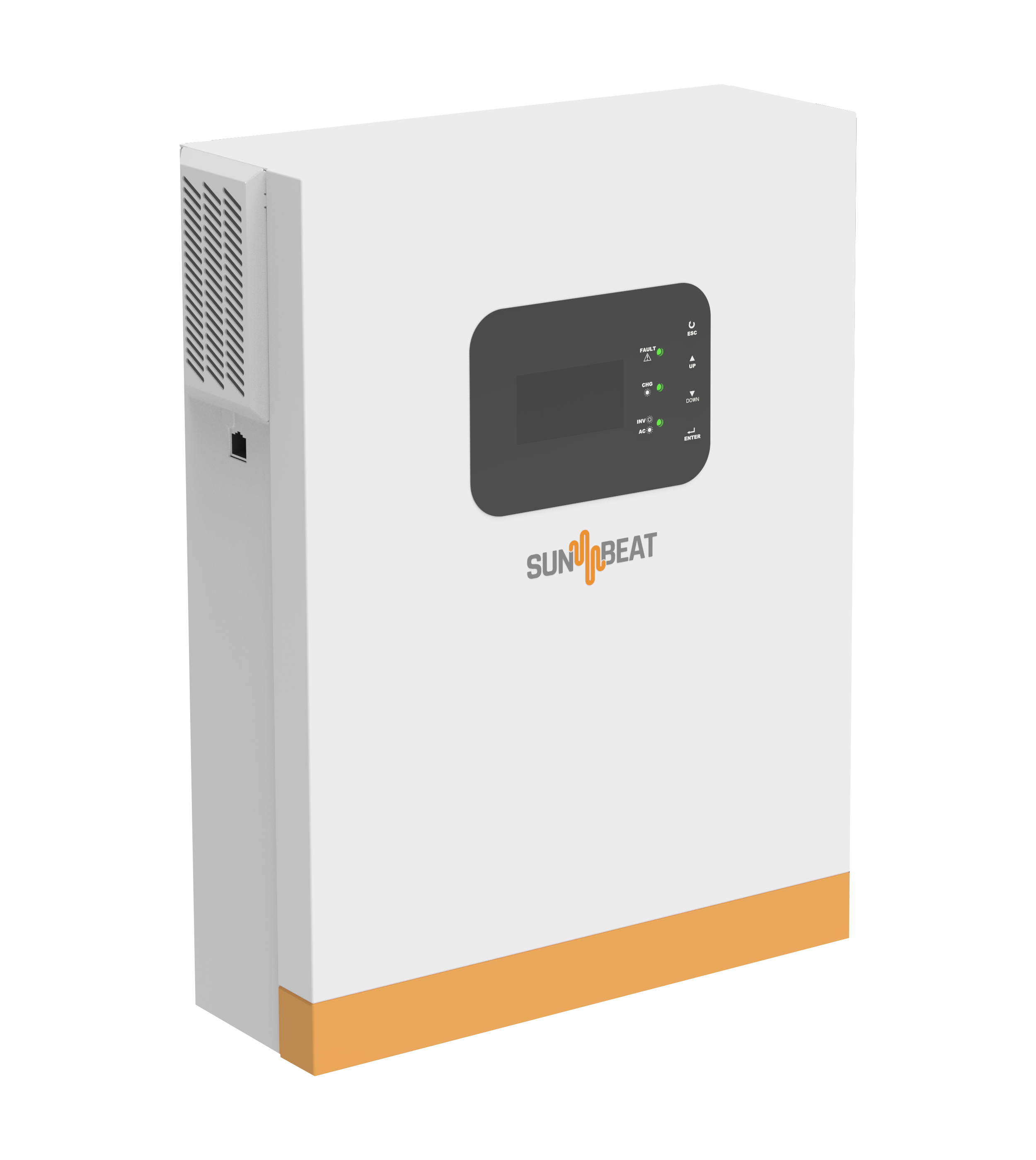

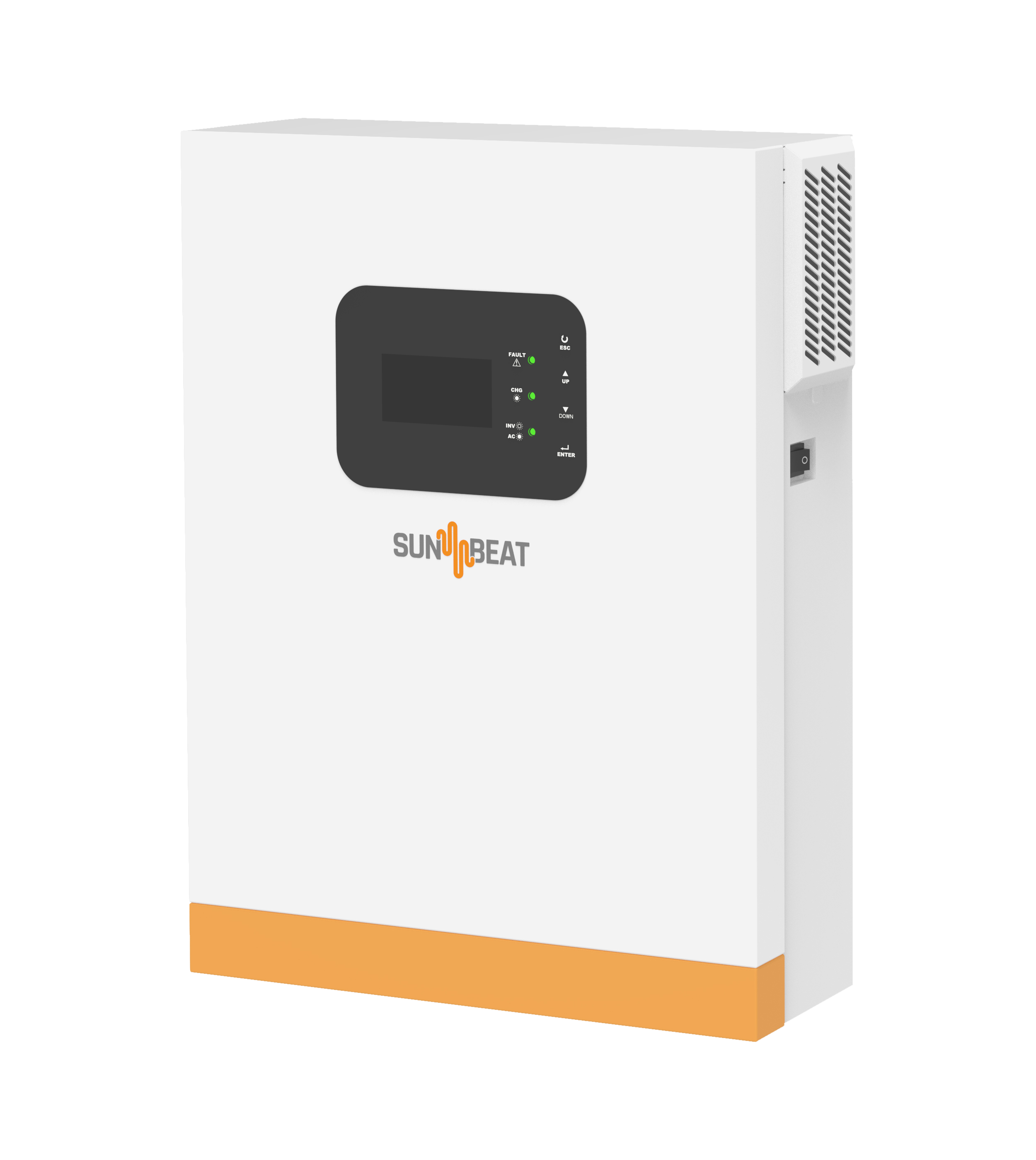

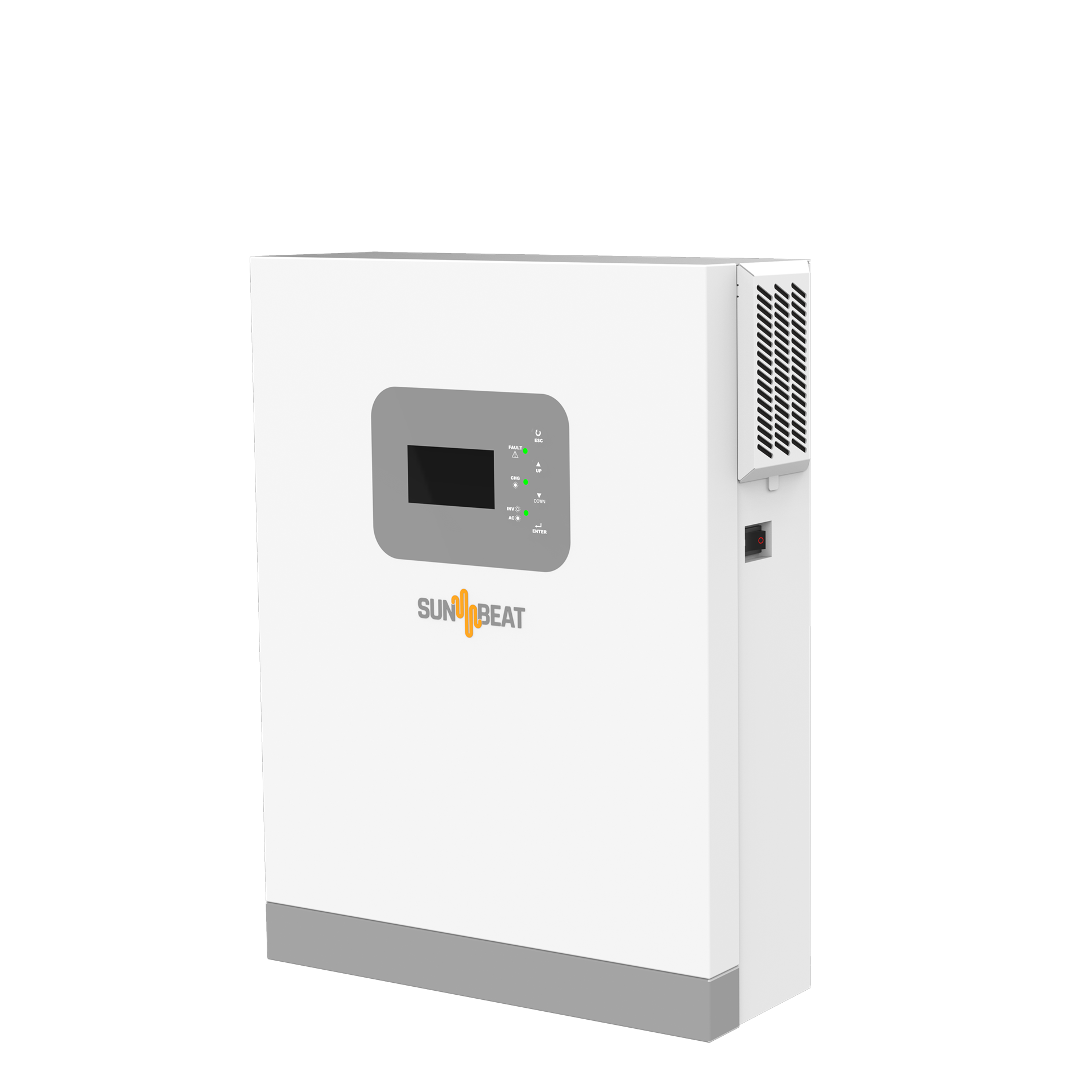

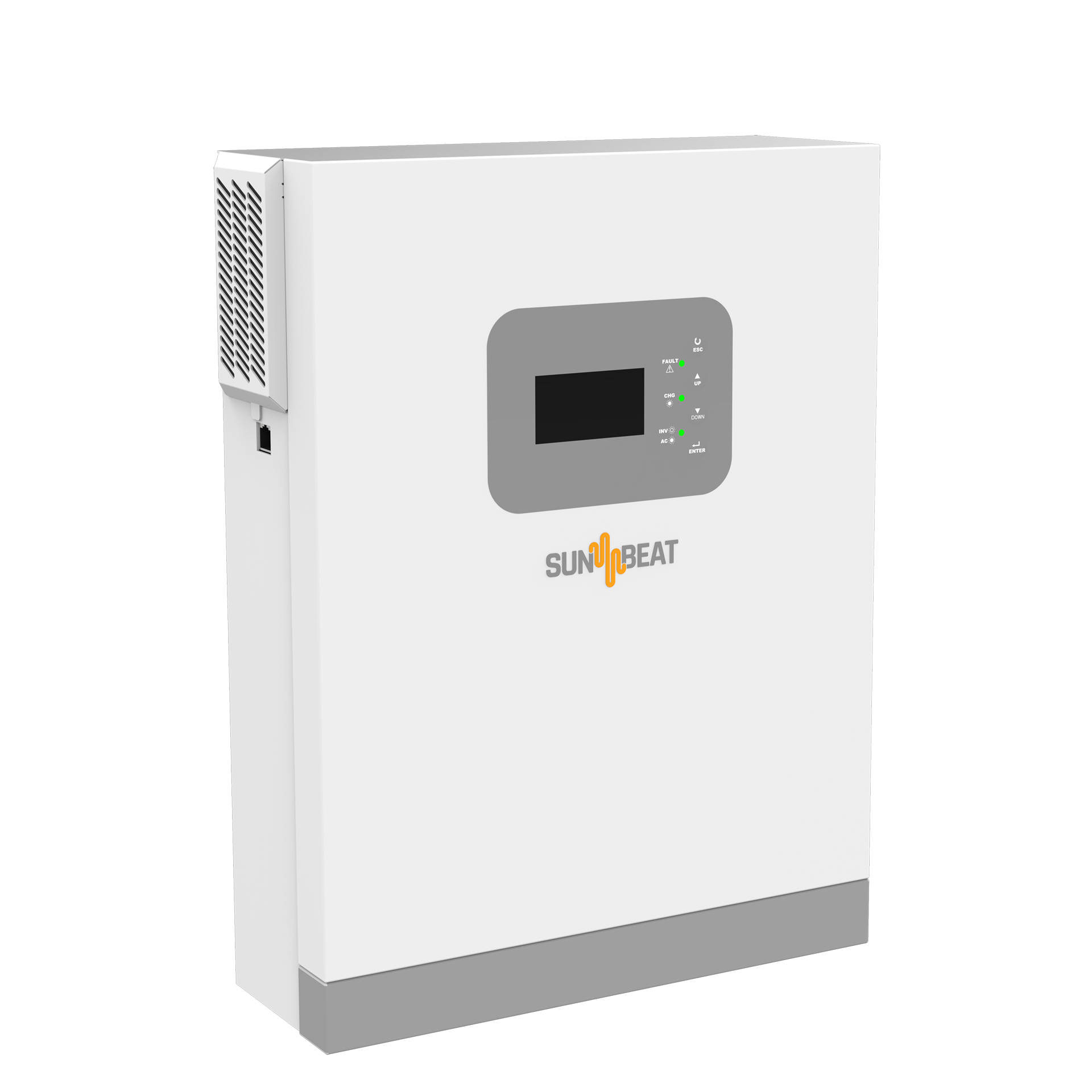

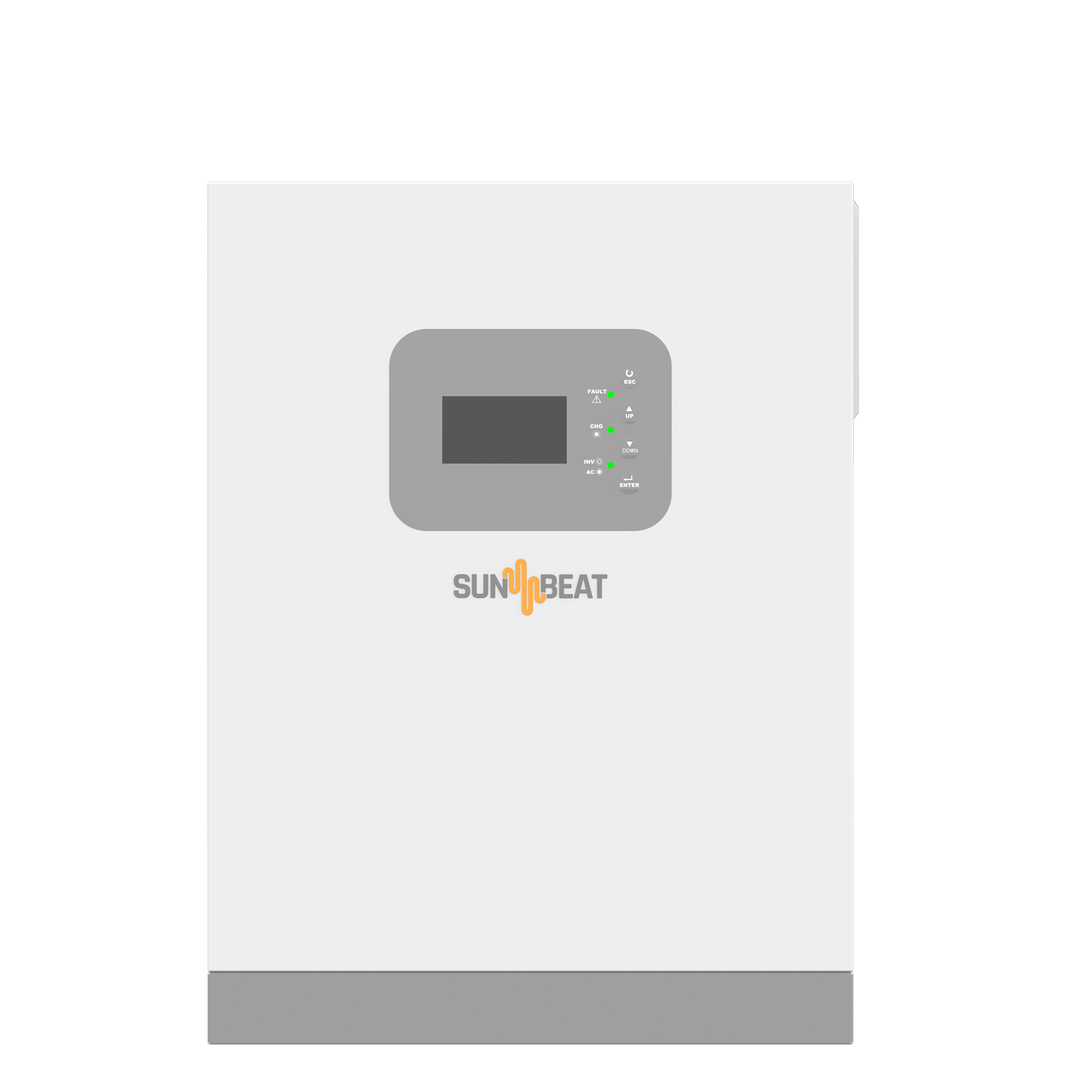

SB OG-3K
- Rated Output 3Kw
- Output voltage 120/110Vac
- Max PV array (1 string) 4000w
- Remote monitoring
- Dimensions 12.2” x 16.3” x 4.3”
SPECIFICATIONS
- AC input 120 Vac
- Nominal input frequency 60/50Hz
- Output short circuit protection Circuit breaker
- Rated output power 3Kw
- Output voltage 120/110/100Vac @5%
- Battery input 48Vdc
- AC charging current (max) 30amp
- PV charging current 40Amp
- Battery types Flooded/AGM/Gel/ Lithium
- MPPT 1
- Max. PV array power 4000W
- PV Array MPPT voltage range 65-450Vdc
- Net weight 10Kg
- Warranty 5 years
HOME MONITORING
The SunBeat Energy+ and SunBeat OG apps allow both users and installers to monitor the performance of their systems. Solar PV, grid, load, and battery performance and condition are readily available for all SunBeat Hybrid Inverters and All in One (ESS) products is a remote energy monitoring software that allows monitoring of solar PV, grid, load, and batteries for SunBeat Hybrid inverters and All in One (ESS) products. The apps allow you to review performance and historical data from your smartphone.
All PV and AC charge priorities can be adjusted remotely to favor load, battery, or a balance of each.
A special installer area allows detailed access to fault codes, status, and more for remote diagnosis and troubleshooting of all registered installations.
WARRANTY
5 years
• The initial warranty period provided for the product.
• Sunbeat Energy warrants that Products will be free from defects for ten years following its initial installation date.
• Please download the full limited warranty here.
