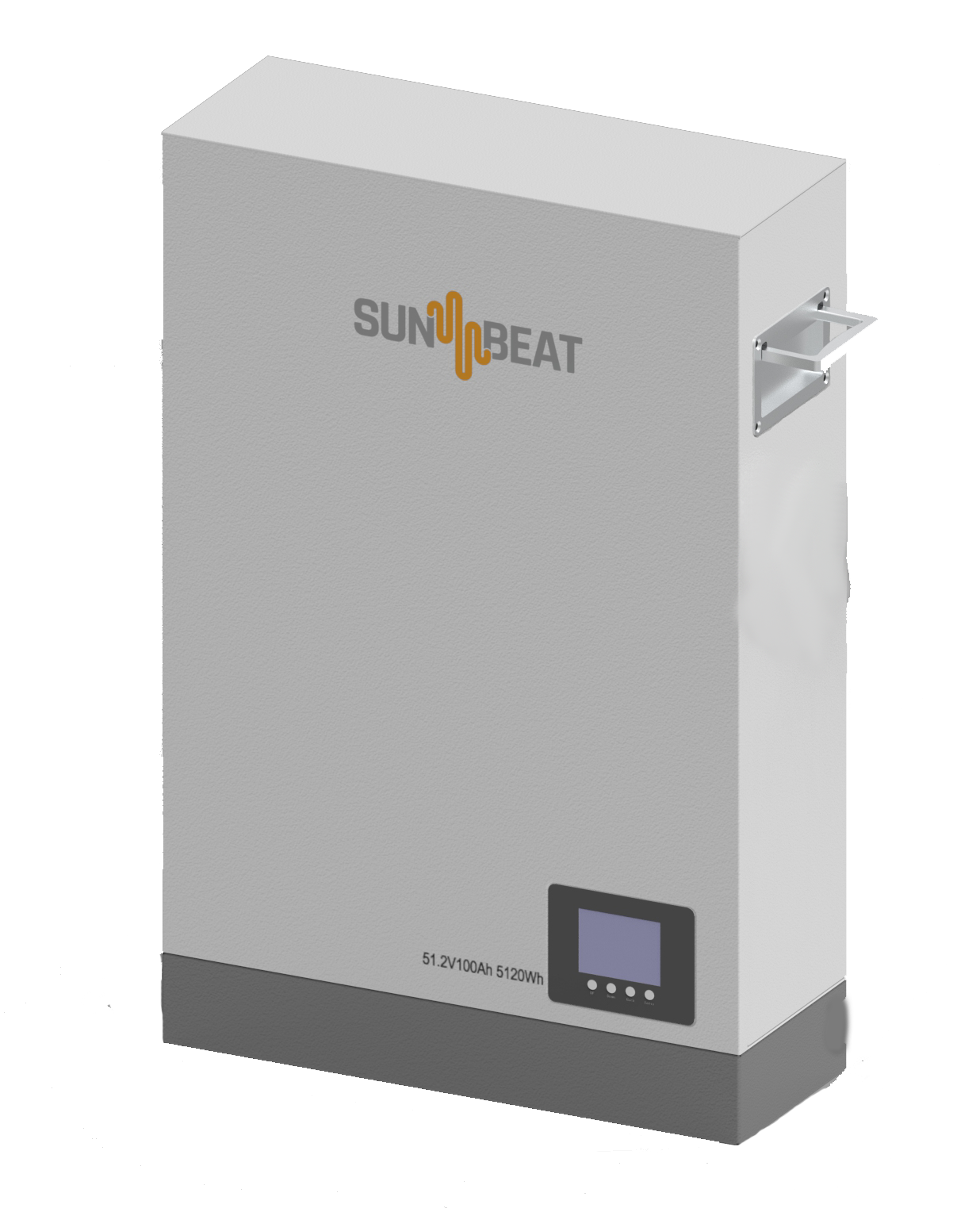

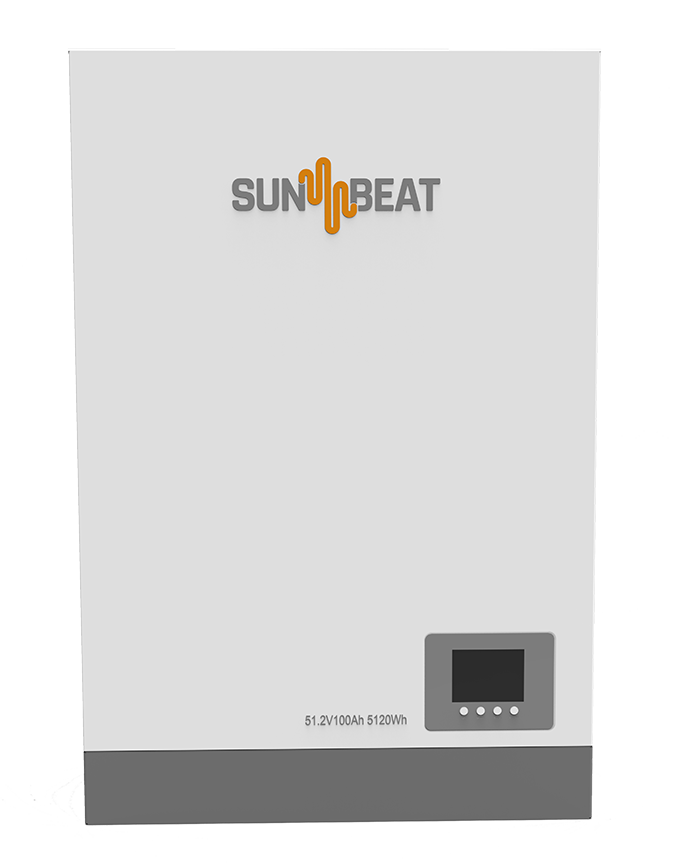

EW-5 PRO
Compact and powerful wall-mount LFP battery
5.12KWh of total storage is ideal for limited space on-grid and off-grid applications such as food trucks, remote installations, and other systems. Pair up to 16 units in parallel for 81.92 KWh of total storage. 10-year guarantee, rated for 6000 cycles, and IP21 protection. Compatible with most hybrid and industry standard charge controllers.
- Rated Capacity (Ah) 100-200
- Total Energy (KWh) 5.12
- Charge voltage (Vdc) 55.0
SPECIFICATIONS
SunBeat lithium-ion batteries deliver efficient and cost-effective energy solution for on-grid, off-grid, self-consumption, on demand energy storage solutions for critical backup and electricity bills savings.
- Wall mounted
- 5.12 KWh usable energy
- 100 Ah
- 51.2 Vdc, 110.67 lbs
- 100 A charging, 100 A discharge
- Compatible with industry standard inverter charge controllers
- Up to sixteen (16) batteries in parallel
- Pair with most hybrid inverter brands
HOME MONITORING
The SunBeat Energy+ and SunBeat OG apps allow both users and installers to monitor the performance of their systems. Solar PV, grid, load, and battery performance and condition are readily available for all SunBeat Hybrid Inverters and All in One (ESS) products is a remote energy monitoring software that allows monitoring of solar PV, grid, load, and batteries for SunBeat Hybrid inverters and All in One (ESS) products. The apps allow you to review performance and historical data from your smartphone.
All PV and AC charge priorities can be adjusted remotely to favor load, battery, or a balance of each.
A special installer area allows detailed access to fault codes, status, and more for remote diagnosis and troubleshooting of all registered installations.
WARRANTY
• The initial warranty period provided for the product.
• Sunbeat Energy warrants that products will be free from defects for ten years after installation.
• Please download the full limited warranty here.
