STACK ENERGY PRO

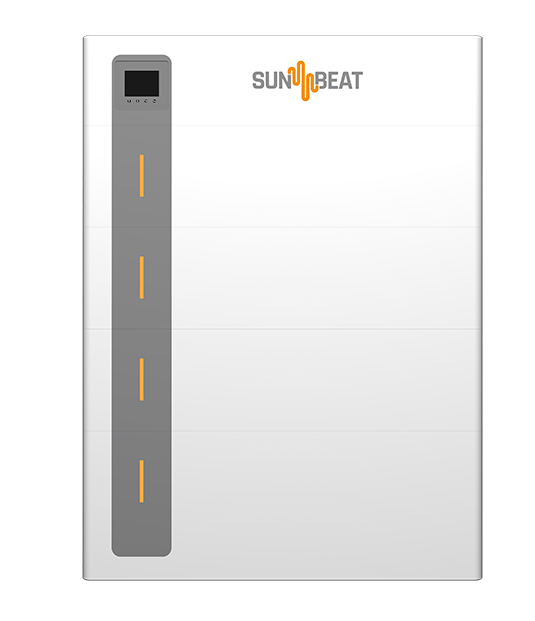

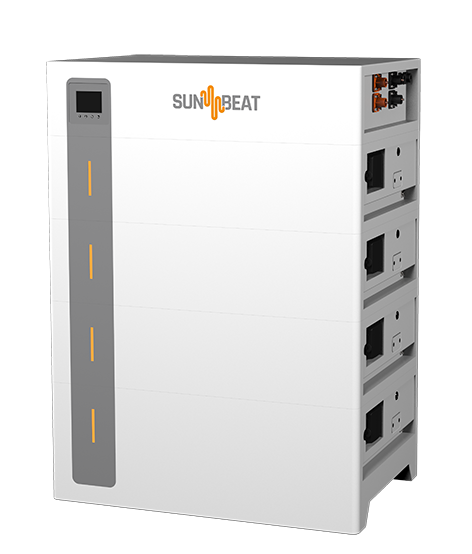

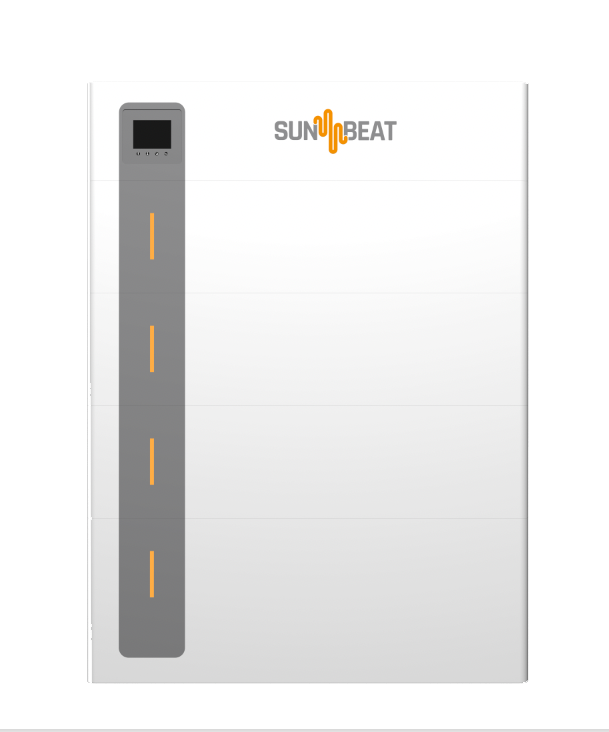

SunBeat Stack Energy Pro is a lithium iron phosphate battery module system equipped with an integrated, intelligent BMS. The unique stackable modular design allows you to expand capacity up to an incredible 328 KWh (64 units). The base module offers 10.24KWh of storage and each additional module 5.12KWh. A compact size and a long battery life (6000 cycles) along with safety features are also part of this system’s many advantages.



Key features

  • Built-in BMS, with battery voltage, current, temperature and battery health management
  • LED indicates battery operation
  • LCD Screen displays battery voltage, current, temperature
  • Compatible with most inverters through CAN or RS485
  • Up to 64pcs in parallel (328 KWh)
  • Integrated fire extinguishing module inside

SPECIFICATIONS

Compact Wall Mounted unit 16.7” x 25.2” x 6.2”

  • Weight 108 lbs
  • Enclosure protection IP27
  • 100A charging/ 100A discharging
  • Up to 16 batteries in parallel (81.92KWh total)
  • Pairs with most hybrid inverter brands
  • 6,000 cycles
  • 10-year warranty, extendable up to 20 years

HOME MONITORING

The SunBeat Energy+  and SunBeat OG apps allow both users and installers to monitor the performance of their systems. Solar PV, grid, load, and battery performance and condition are readily available for all SunBeat Hybrid Inverters and All in One  (ESS) products is a remote energy monitoring software that allows monitoring of solar PV, grid, load, and batteries for SunBeat Hybrid inverters and All in One (ESS) products. The apps allow you to review performance and historical data from your smartphone.

All PV and AC charge priorities can be adjusted remotely to favor load, battery, or a balance of each.

A special installer area allows detailed access to fault codes, status, and more for remote diagnosis and troubleshooting of all registered installations.

app icon



WARRANTY

• The initial warranty period provided for the product.
• Sunbeat Energy warrants that products will be free from defects for ten years after installation.
• Please download the full limited warranty here.

Fully integrated energy storage solution to enhance your residence or small commercial facility.
